HPC-135-001 Power Chuck
By PRAGATI ENGINEERING BELGAUM PVT LTD

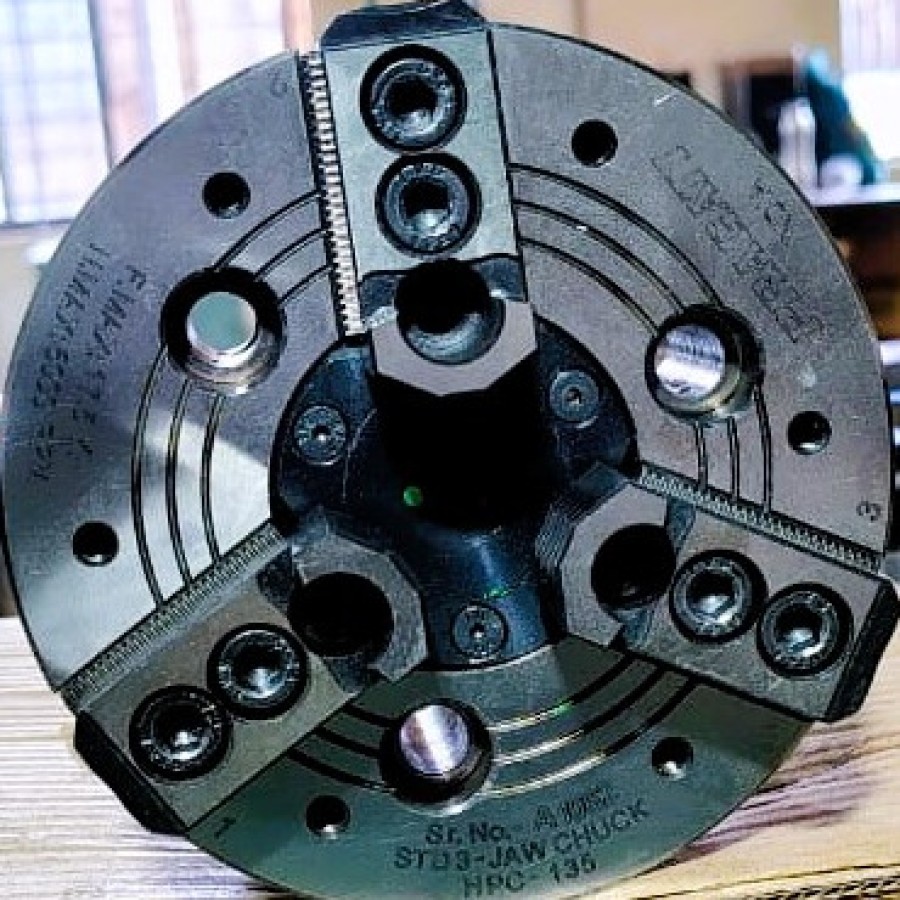

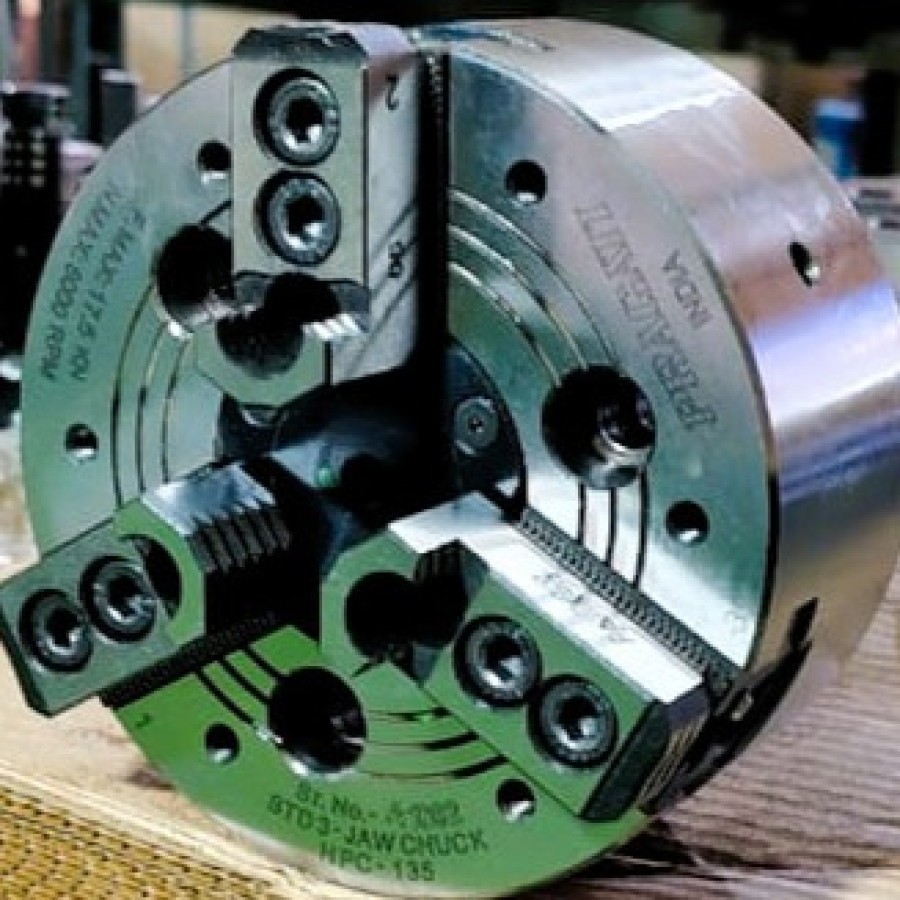

The HPC-135-001 is a compact, high-precision 3-jaw hydraulic power chuck designed for CNC lathes and turning centers. With a plunger stroke of 10 mm and a jaw stroke of 4.6 mm, it ensures smooth and reliable clamping performance across various applications.
This model delivers a maximum gripping force of 36.7 kN, supported by a permissible input force of 1780 kgf, enabling secure holding of workpieces even at high rotational speeds of up to 7900 RPM. Engineered with a moment of inertia of just 0.015 kg·m², the chuck supports high-speed operations while minimizing energy consumption.
Weighing approximately 6 kg, the HPC-135-001 is built with metric serration (1.5 x 60°) for easy jaw interchangeability. It is supplied with a complete set of accessories including hard jaws, soft jaws, mounting screws, a spanner, grease gun, and handle.
Ideal for precision machining in automotive, aerospace, and general manufacturing industries, the HPC-135-001 is a dependable solution for maximizing productivity and accuracy.
This model delivers a maximum gripping force of 36.7 kN, supported by a permissible input force of 1780 kgf, enabling secure holding of workpieces even at high rotational speeds of up to 7900 RPM. Engineered with a moment of inertia of just 0.015 kg·m², the chuck supports high-speed operations while minimizing energy consumption.
Weighing approximately 6 kg, the HPC-135-001 is built with metric serration (1.5 x 60°) for easy jaw interchangeability. It is supplied with a complete set of accessories including hard jaws, soft jaws, mounting screws, a spanner, grease gun, and handle.
Ideal for precision machining in automotive, aerospace, and general manufacturing industries, the HPC-135-001 is a dependable solution for maximizing productivity and accuracy.
- CATEGORIES : Hand & Machine Tools Cutting Tools & Items CNC Tools
Product Description
The HPC-135-001 is a compact, high-precision 3-jaw hydraulic power chuck designed for CNC lathes and turning centers. With a plunger stroke of 10 mm and a jaw stroke of 4.6 mm, it ensures smooth and reliable clamping performance across various applications.
This model delivers a maximum gripping force of 36.7 kN, supported by a permissible input force of 1780 kgf, enabling secure holding of workpieces even at high rotational speeds of up to 7900 RPM. Engineered with a moment of inertia of just 0.015 kg·m², the chuck supports high-speed operations while minimizing energy consumption.
Weighing approximately 6 kg, the HPC-135-001 is built with metric serration (1.5 x 60°) for easy jaw interchangeability. It is supplied with a complete set of accessories including hard jaws, soft jaws, mounting screws, a spanner, grease gun, and handle.
Ideal for precision machining in automotive, aerospace, and general manufacturing industries, the HPC-135-001 is a dependable solution for maximizing productivity and accuracy.
This model delivers a maximum gripping force of 36.7 kN, supported by a permissible input force of 1780 kgf, enabling secure holding of workpieces even at high rotational speeds of up to 7900 RPM. Engineered with a moment of inertia of just 0.015 kg·m², the chuck supports high-speed operations while minimizing energy consumption.
Weighing approximately 6 kg, the HPC-135-001 is built with metric serration (1.5 x 60°) for easy jaw interchangeability. It is supplied with a complete set of accessories including hard jaws, soft jaws, mounting screws, a spanner, grease gun, and handle.
Ideal for precision machining in automotive, aerospace, and general manufacturing industries, the HPC-135-001 is a dependable solution for maximizing productivity and accuracy.
Export Countries
China
Germany
Related Sectors
Aerospace
Defence
Manufacturing
Micro, Medium & Small Scale Industry
Brand
Pragati
Modal Number
HPC-135-01
