Locknuts
By A NAIRSONS INDUSTRY INDIA
Locknuts
Lock nuts are used to locate bearings and other components onto a shaft or adapter sleeve. They are also used for mounting bearings on tapered shaft seats and dismounting bearings from withdrawal sleeves. Lock nuts have to be secured to prevent unintentional loosening. This is done, either by a locking device that engages a key way in the shaft or key slot in the adapter sleeve, or by a locking mechanism integrated in the nut. Lock nuts with an integrated locking mechanism reduce the cost of the shaft as no key way is required. Installation is also quicker and easier because no separate locking device is necessary. However, the loosening torque requires more attention.
The product codes for lock nuts start with HM or KM.
KM, KML or HM, HML, and HMLL have four grooves on their outer diameter. By contrast, the HM 30.. and HM 31.. ranges have eight grooves on their outer diameter and eight thread bores for securing a locking clip. Different suffixes (letters) distinguish within the ranges. A distinction is made between H and HS designs.
H = Lock nuts with the suffix H have additional thread bores right through them. This makes it possible to mount them with additional screws.
HS = Lock nuts with the suffix HS have additional thread bores right through them and come with the relevant mounting screws.

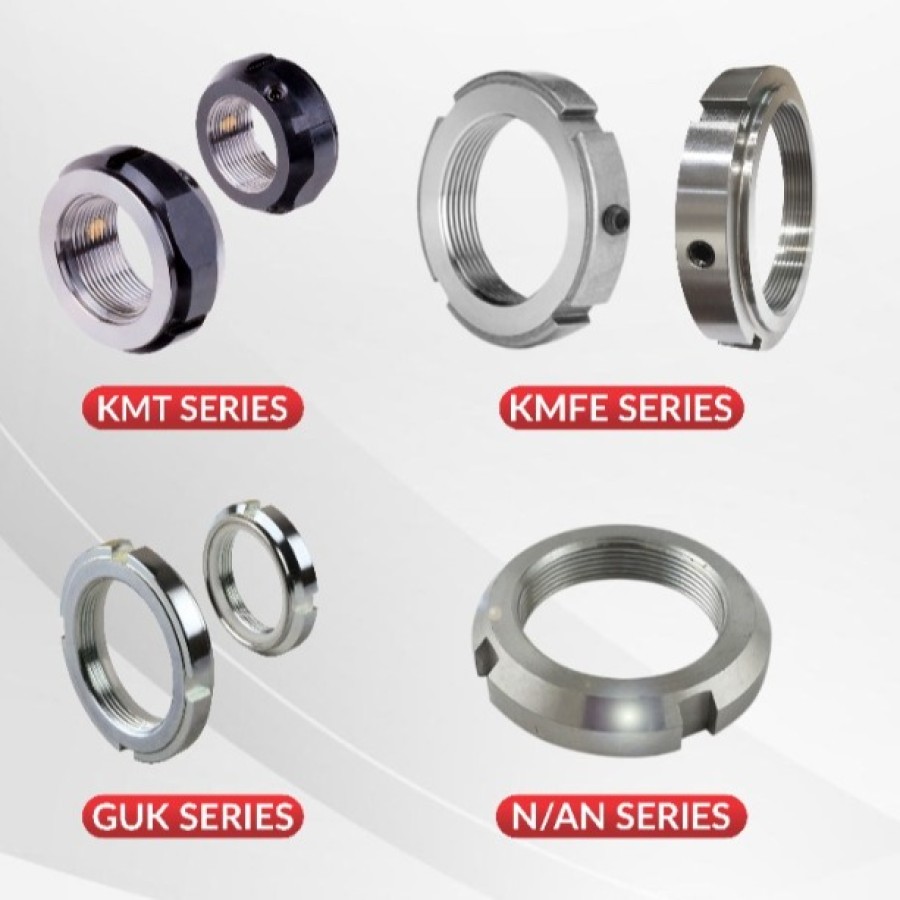

The standard lock nut and washer is replaced by a KMFE, washer less nut or the standard lock nut HM30 is replaced by HME nut with a recessed outside diameter.
Lock nuts are used to locate bearings and other components onto a shaft or adapter sleeve. They are also used for mounting bearings on tapered shaft seats and dismounting bearings from withdrawal sleeves. Lock nuts have to be secured to prevent unintentional loosening. This is done, either by a locking device that engages a key way in the shaft or key slot in the adapter sleeve, or by a locking mechanism integrated in the nut. Lock nuts with an integrated locking mechanism reduce the cost of the shaft as no key way is required. Installation is also quicker and easier because no separate locking device is necessary. However, the loosening torque requires more attention.
The product codes for lock nuts start with HM or KM.
KM, KML or HM, HML, and HMLL have four grooves on their outer diameter. By contrast, the HM 30.. and HM 31.. ranges have eight grooves on their outer diameter and eight thread bores for securing a locking clip. Different suffixes (letters) distinguish within the ranges. A distinction is made between H and HS designs.
H = Lock nuts with the suffix H have additional thread bores right through them. This makes it possible to mount them with additional screws.
HS = Lock nuts with the suffix HS have additional thread bores right through them and come with the relevant mounting screws.
The standard lock nut and washer is replaced by a KMFE, washer less nut or the standard lock nut HM30 is replaced by HME nut with a recessed outside diameter.
Keywords :
Bearing locknuts
Hydraulic locknuts
Inch locknuts
Km locknuts
Locknuts
Precision locknuts
- CATEGORIES : Industrial Plants & Machinery Textile & Garment Machines Paper Work & Making Machine Textile Machinery Spares Winding Machine Spares Button Making Machine Spare Parts Agarbatti Machine Spare Parts Building & Construction Excavator and Earth Moving Machinery Earthmoving Machinery Parts Mechanical Parts & Spares Sheet Metal & Turned Components Machine Parts Sheet Metal Parts Automobile, Parts & Spares Off Road & Earth Moving Vehicles Truck Parts Agriculture & Farming Tractor, Tractor Parts & Assemblies Tractor Spare Parts Rail, Shipping & Aviation Railroad & Train Parts Railway Parts
Product Description
Locknuts
Lock nuts are used to locate bearings and other components onto a shaft or adapter sleeve. They are also used for mounting bearings on tapered shaft seats and dismounting bearings from withdrawal sleeves. Lock nuts have to be secured to prevent unintentional loosening. This is done, either by a locking device that engages a key way in the shaft or key slot in the adapter sleeve, or by a locking mechanism integrated in the nut. Lock nuts with an integrated locking mechanism reduce the cost of the shaft as no key way is required. Installation is also quicker and easier because no separate locking device is necessary. However, the loosening torque requires more attention.
The product codes for lock nuts start with HM or KM.
KM, KML or HM, HML, and HMLL have four grooves on their outer diameter. By contrast, the HM 30.. and HM 31.. ranges have eight grooves on their outer diameter and eight thread bores for securing a locking clip. Different suffixes (letters) distinguish within the ranges. A distinction is made between H and HS designs.
H = Lock nuts with the suffix H have additional thread bores right through them. This makes it possible to mount them with additional screws.
HS = Lock nuts with the suffix HS have additional thread bores right through them and come with the relevant mounting screws.
The standard lock nut and washer is replaced by a KMFE, washer less nut or the standard lock nut HM30 is replaced by HME nut with a recessed outside diameter.
Lock nuts are used to locate bearings and other components onto a shaft or adapter sleeve. They are also used for mounting bearings on tapered shaft seats and dismounting bearings from withdrawal sleeves. Lock nuts have to be secured to prevent unintentional loosening. This is done, either by a locking device that engages a key way in the shaft or key slot in the adapter sleeve, or by a locking mechanism integrated in the nut. Lock nuts with an integrated locking mechanism reduce the cost of the shaft as no key way is required. Installation is also quicker and easier because no separate locking device is necessary. However, the loosening torque requires more attention.
The product codes for lock nuts start with HM or KM.
KM, KML or HM, HML, and HMLL have four grooves on their outer diameter. By contrast, the HM 30.. and HM 31.. ranges have eight grooves on their outer diameter and eight thread bores for securing a locking clip. Different suffixes (letters) distinguish within the ranges. A distinction is made between H and HS designs.
H = Lock nuts with the suffix H have additional thread bores right through them. This makes it possible to mount them with additional screws.
HS = Lock nuts with the suffix HS have additional thread bores right through them and come with the relevant mounting screws.
The standard lock nut and washer is replaced by a KMFE, washer less nut or the standard lock nut HM30 is replaced by HME nut with a recessed outside diameter.
Export Countries
France
Germany
United Arab Emirates
United Kingdom of Great Britain and Northern Ireland
United States of America
Related Sectors
Engineering
Exports & Imports
Manufacturing
Web Link
Certification
ISO 9001-2005
Major Buyers
INDUSTRIAL EQUIPMENT MANUFACTUERES
Availability
Any
Brand
KT KINGTIGER
Modal Number
any
Material
STEEL
Finishing
CNC
Dimension
MM or INCH
Weight
KGS
Package Type
Any
Energy Efficiency
Yes
Usage Application
Industrial use with bearings
Guarantee
Yes
Warranty
Yes
