ICFS-Plastic Plug - PVC-8X100
By INDO SPARK CONSTRUCTION SERVICES
Price:
Rs. 6.00/Piece
ICFS Plastic Plug (PVC-8x100)
Overview
The ICFS Plastic Plug (PVC-8x100) is an extended-length frame fixing plug designed for medium-duty anchorings into solid, hollow, and lightweight masonry substrates. Engineered with an overall length of 100 mm and an 8 mm shaft diameter, this plug provides deep embedment depth to securely anchor thick fixtures, door and window sub-frames, wall timber battens, and facade brackets.
Key Features & Benefits
Extended 100mm Length: Allows deep wall penetration through non-structural rendering or plaster layers to reach solid load-bearing brick or concrete behind.
Anti-Rotation Ribs & Wings: Side molded fins prevent the plug from spinning or twisting inside drilled holes during screw installation.
4-Way Radial Expansion: Splitting body design expands evenly across 4 quadrants to provide reliable grip and high pull-out resistance without cracking fragile or hollow masonry blocks.
Collar Rim Design: Built-in top rim prevents the anchor sleeve from sliding too deep into oversized or hollow drill holes during installation.
High Chemical & Moisture Resistance: Polyvinyl chloride (PVC) construction offers excellent resistance to damp environments, soil alkalis, and atmospheric weathering without degrading over time.
Primary Applications

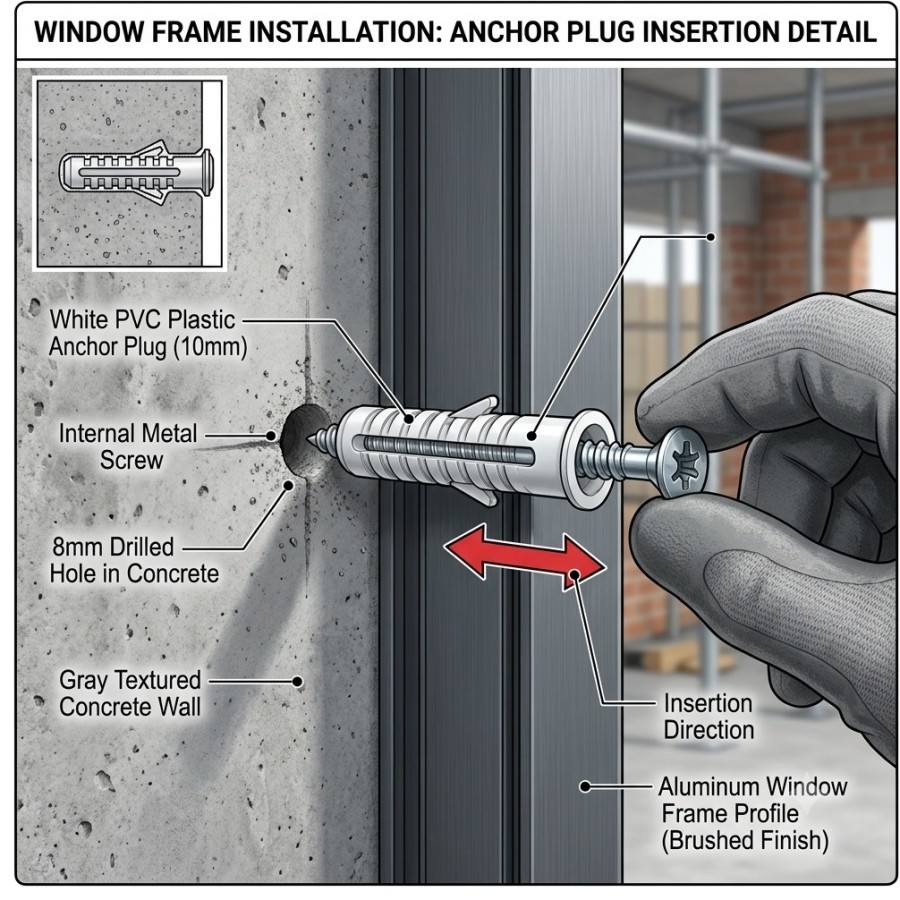

Deep frame anchoring for aluminum, uPVC, and timber window frames and door jambs.
Fastening structural timber battens, furring strips, wall paneling, and facade sub-structures.

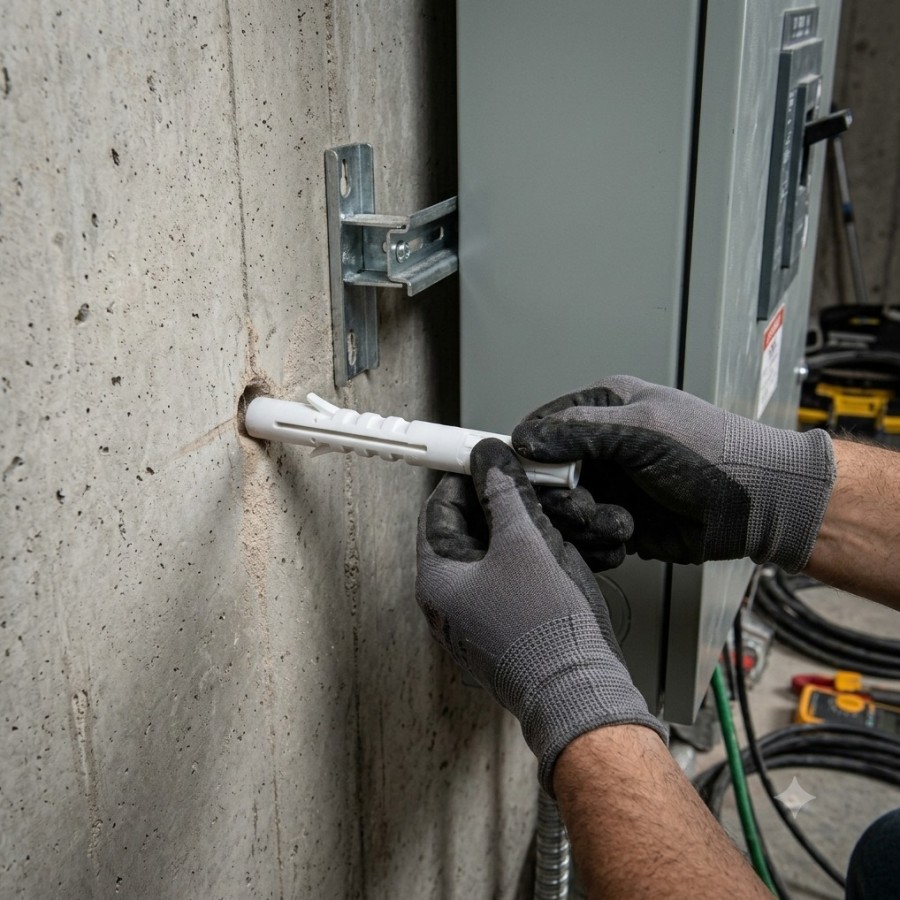

Securing plumbing pipe clamps, heavy electrical trunking, HVAC unit brackets, and cable trays.
Anchoring wall shelves, cabinetry channels, and kitchen/bathroom fit-outs.
Overview
The ICFS Plastic Plug (PVC-8x100) is an extended-length frame fixing plug designed for medium-duty anchorings into solid, hollow, and lightweight masonry substrates. Engineered with an overall length of 100 mm and an 8 mm shaft diameter, this plug provides deep embedment depth to securely anchor thick fixtures, door and window sub-frames, wall timber battens, and facade brackets.
Key Features & Benefits
Extended 100mm Length: Allows deep wall penetration through non-structural rendering or plaster layers to reach solid load-bearing brick or concrete behind.
Anti-Rotation Ribs & Wings: Side molded fins prevent the plug from spinning or twisting inside drilled holes during screw installation.
4-Way Radial Expansion: Splitting body design expands evenly across 4 quadrants to provide reliable grip and high pull-out resistance without cracking fragile or hollow masonry blocks.
Collar Rim Design: Built-in top rim prevents the anchor sleeve from sliding too deep into oversized or hollow drill holes during installation.
High Chemical & Moisture Resistance: Polyvinyl chloride (PVC) construction offers excellent resistance to damp environments, soil alkalis, and atmospheric weathering without degrading over time.
Primary Applications
Deep frame anchoring for aluminum, uPVC, and timber window frames and door jambs.
Fastening structural timber battens, furring strips, wall paneling, and facade sub-structures.
Securing plumbing pipe clamps, heavy electrical trunking, HVAC unit brackets, and cable trays.
Anchoring wall shelves, cabinetry channels, and kitchen/bathroom fit-outs.
Product Description
ICFS Plastic Plug (PVC-8x100)
Overview
The ICFS Plastic Plug (PVC-8x100) is an extended-length frame fixing plug designed for medium-duty anchorings into solid, hollow, and lightweight masonry substrates. Engineered with an overall length of 100 mm and an 8 mm shaft diameter, this plug provides deep embedment depth to securely anchor thick fixtures, door and window sub-frames, wall timber battens, and facade brackets.
Key Features & Benefits
Extended 100mm Length: Allows deep wall penetration through non-structural rendering or plaster layers to reach solid load-bearing brick or concrete behind.
Anti-Rotation Ribs & Wings: Side molded fins prevent the plug from spinning or twisting inside drilled holes during screw installation.
4-Way Radial Expansion: Splitting body design expands evenly across 4 quadrants to provide reliable grip and high pull-out resistance without cracking fragile or hollow masonry blocks.
Collar Rim Design: Built-in top rim prevents the anchor sleeve from sliding too deep into oversized or hollow drill holes during installation.
High Chemical & Moisture Resistance: Polyvinyl chloride (PVC) construction offers excellent resistance to damp environments, soil alkalis, and atmospheric weathering without degrading over time.
Primary Applications
Deep frame anchoring for aluminum, uPVC, and timber window frames and door jambs.
Fastening structural timber battens, furring strips, wall paneling, and facade sub-structures.
Securing plumbing pipe clamps, heavy electrical trunking, HVAC unit brackets, and cable trays.
Anchoring wall shelves, cabinetry channels, and kitchen/bathroom fit-outs.
Overview
The ICFS Plastic Plug (PVC-8x100) is an extended-length frame fixing plug designed for medium-duty anchorings into solid, hollow, and lightweight masonry substrates. Engineered with an overall length of 100 mm and an 8 mm shaft diameter, this plug provides deep embedment depth to securely anchor thick fixtures, door and window sub-frames, wall timber battens, and facade brackets.
Key Features & Benefits
Extended 100mm Length: Allows deep wall penetration through non-structural rendering or plaster layers to reach solid load-bearing brick or concrete behind.
Anti-Rotation Ribs & Wings: Side molded fins prevent the plug from spinning or twisting inside drilled holes during screw installation.
4-Way Radial Expansion: Splitting body design expands evenly across 4 quadrants to provide reliable grip and high pull-out resistance without cracking fragile or hollow masonry blocks.
Collar Rim Design: Built-in top rim prevents the anchor sleeve from sliding too deep into oversized or hollow drill holes during installation.
High Chemical & Moisture Resistance: Polyvinyl chloride (PVC) construction offers excellent resistance to damp environments, soil alkalis, and atmospheric weathering without degrading over time.
Primary Applications
Deep frame anchoring for aluminum, uPVC, and timber window frames and door jambs.
Fastening structural timber battens, furring strips, wall paneling, and facade sub-structures.
Securing plumbing pipe clamps, heavy electrical trunking, HVAC unit brackets, and cable trays.
Anchoring wall shelves, cabinetry channels, and kitchen/bathroom fit-outs.
Related Sectors
Manufacturing
Web Link
Certification
ISO 9001:2015
Major Buyers
ICFS Plastic Plug (PVC-8x100)The B2B purchasing network for the ICFS Plastic Plug (PVC-8x100) includes specialized installation contractors, facade engineers, interior fit-out firms, and building supply distributors:1. Fenestration & Door Frame Installers
Availability
stock availability and order quantity.
Brand
ICFS
Modal Number
ICFS-Plastic Plug - PVC-8X100
Material
MS WITH PLASTIC PLUG
Finishing
Smooth Finish
Dimension
100X8X8
Weight
10 gram
Package Type
BOX
Energy Efficiency
Although the ICFS Plastic Plug (PVC-8x100) is a mechanical anchor rather than an insulating chemical or sealant, it directly contributes to building energy efficiency and structural envelope integrity in several key ways:1. Ensures Airtight Window & Door
Usage Application
ICFS Plastic Plug (PVC-8x100):1. Primary Applications by Trade & SubstrateFenestration & Frame Anchorage (Windows & Doors):Deep anchoring of uPVC, aluminum, and timber window frames through non-structural rendering or plaster into solid wall masonry. Se
Guarantee
5-YEAR LIMITED PRODUCT GUARANTEE
Warranty
5-YEAR LIMITED PRODUCT GUARANTEE
About the Company
Construction Services and Anchor Fastening Systems
Indo Construction Fastening Systems (ICFS) specializes in concrete drilling and cutting services, with expertise in diamond drilling, diamond sawing, and controlled demolition work. We also manufacture and supply a wide range of high-quality chemical anchors, nylon anchors, and mechanical anchors, offering reliable and efficient fastening solutions for various construction and infrastructure applications.
Indo Construction Fastening Systems (ICFS) specializes in concrete drilling and cutting services, with expertise in diamond drilling, diamond sawing, and controlled demolition work. We also manufacture and supply a wide range of high-quality chemical anchors, nylon anchors, and mechanical anchors, offering reliable and efficient fastening solutions for various construction and infrastructure applications.
Rajesh V., Commercial Fenestration & Glazing Lead
Application: Fenestration & Door Frame Anchoring"Deep 100mm embedment holds uPVC frames rigid across thick plaster voids.""When fixing window frames onto brickwork with heavy external render, standard 50mm or 60mm plugs don't reach solid masonry. The ICFS 8x100mm plug gives us the extra length needed to penetrate through non-structural plaster and achieve a deep expansion lock. Frame vibration and loosening are completely eliminated." — Rajesh V., Commercial Fenestration & Glazing Lead
